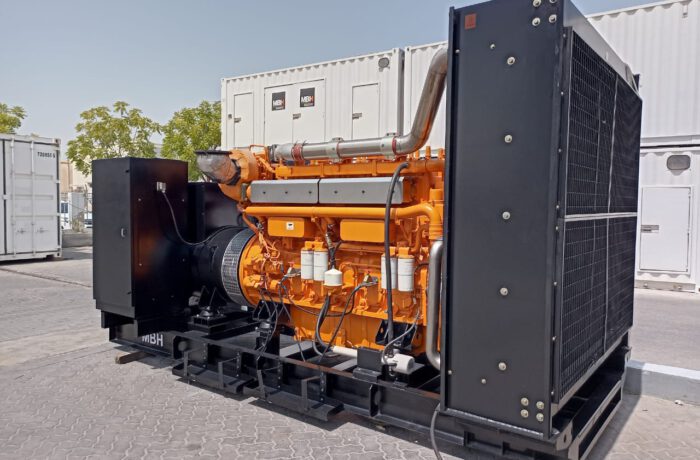

- HIGH SPEED DIESEL GENERATING SETS -
Diesel powered high speed generating sets remain the most popular units for continuous, prime, standby and emergency power needs worldwide; this is why MBH offers a complete range of high speed diesel gen-sets.
The high speed diesel gen-sets manufactured by MBH have the following specifications and benefits:
- Optimized performance
- Proven reliability
- Optimized fuel efficiency
- Optimized life-cycle costs
- Easy to install and operate
- Easy to service
- Serviced worldwide, around the clock
- Available in open and enclosed versions
MBH 50HZ HIGH SPEED DIESEL GENSETS BASED ON MBH ENGINES AND ALTERNATORS
| Sl. no | Generator Model | Prime KVA/kW | Standby KVA/kW | Engine Model | Prime kWm | Standby kWm | Alternator Model | Continuous kWe | Standby kWe |
| 1 | MBH110 | 103/82 | 113/90 | 6LTD-K | 91 | 99 | D1 XI 4 | 89.6 | 95.2 |
| 2 | MBH165 | 150/120 | 165/132 | 6LTAD-K1 | 130 | 143 | D5 XI 4 | 128 | 136 |
| 3 | MBH225 | 200/160 | 225/180 | 6LTAD-M | 172 | 194 | D8 XI 4 | 180 | 196 |
| 4 | MBH275 | 250/200 | 275/220 | 6LTAD-M1 | 234 | 265 | D9 XI 4 | 200 | 212 |
| 5 | MBH350 | 319/ 255 | 350/280 | 6LTAD-M2 | 281 | 310 | E2 WI 4 | 280 | 296 |
| 6 | MBH440 | 400/320 | 440/352 | 6LTAD-LC9 | 339 | 365 | F0 WI 4 | 360 | 382 |
| 7 | MBH550 | 500/400 | 550/440 | 6LTAD-LC8 | 424 | 466 | F2 WI 4 | 448 | 475 |
| 8 | MBH660 | 600/480 | 660/528 | 6LTAD-LC7 | 505 | 557 | F4 WI 4 | 532 | 560 |
| 9 | MBH756 | 688/550 | 756/605 | 6LTAD-LC6 | 589 | 649 | G0 WI 4 | 600 | 620 |
| 10 | MBH825 | 750/600 | 825/660 | 6LTAD-LC5 | 653 | 720 | G1 WI 4 | 640 | 660 |
| 11 | MBH900 | 812/650 | 897/718 | 6LTAD-LC4 | 685 | 757 | G2 WI 4 | 728 | 750 |
| 12 | MBH1050 | 932/746 | 1029/823 | 6LTAD-LC3 | 785 | 867 | G4 WI 4 | 896 | 924 |
| 13 | MBH1100 | 1030/824 | 1133/906 | 6LTAD-LC2 | 839 | 927 | G5 WI 4 | 1000 | 1030 |
| 14 | MBH1300 | 1162/930 | 1283/1026 | 6LTAD-LC1 | 975 | 1077 | G5 WI 4 | 1000 | 1030 |
| 15 | MBH1300 | 1162/930 | 1283/1026 | 12VTAD-S1 | 976 | 1078 | G5 WI 4 | 1000 | 1030 |
| 16 | MBH1400 | 1255/1004 | 1387/1100 | 12VTAD-LC5 | 1065 | 1175 | H0 WI 4 | 1120 | 1168 |
| 17 | MBH1650 | 1516/ 1213 | 1678/1342 | 12VTAD-LC4 | 1306 | 1446 | H2 WI 4 | 1320 | 1376 |
| 18 | MBH1750 | 1562/1250 | 1730/1384 | 12VTAD-LC4 | 1306 | 1446 | H3 WI 4 | 1520 | 1584 |
| 19 | MBH1900 | 1733/1386 | 1914/1531 | 12VTAD-LC3 | 1446 | 1596 | H3 WI 4 | 1520 | 1584 |
| 20 | MBH2150 | 1926/1541 | 2130/1704 | 12VTAD-LC2 | 1606 | 1776 | H4 WI 4 | 1656 | 1728 |
| 21 | MBH2300 | 2075/1660 | 2291/1833 | 12VTAD-LC1 | 1731 | 1911 | H5 WI 4 | 1760 | 1836 |
| 22 | MBH2500 | 2275/1800 | 2500/2000 | 16VTAD-LC4 | 2005 | 2206 | H6 WI 4 | 2500 | 2750 |
| 23 | MBH2750 | 2500/2000 | 2750/2200 | 16VTAD-LC3 | 2140 | 2362 | H6 WI 4 | 2500 | 2750 |
| 24 | MBH3000 | 2750/2200 | 3000/2400 | 16VTAD-LC2 | 2405 | 2646 | H7 WI 4 | 2800 | 3080 |
MBH 50HZ HIGH SPEED DIESEL GENSETS BASED ON MITSUBISHI, CUMMINS AND MTU ENGINES
| Genset Model | Engine Make | Engine Country of Origin | Engine Model | Standby Rating (KWe @ 1500rpm) | Prime Rating (KWe @ 1500rpm) |
| MBH 900-C | Cummins | India | QSK23G3 | 702 | 641 |
| MBH 900-T | Mitsubishi | France | S12A2-PTA | 704 | 641 |
| MBH 1000-C | Cummins | UK | QST30G3 | 829 | 745 |
| MBH 1100-C | Cummins | UK | QST30G4 | 894 | 809 |
| MBH 1140-C | Cummins | India | KTA38G5 | 910 | 824 |
| MBH 1150-T | Mitsubishi | France | S12H-PTA | 934 | 848 |
| MBH 1400-T | Mitsubishi | France | S12R-PTA | 1132 | 1029 |
| MBH 1450-C | Cummins | India | KTA50G3 | 1156 | 1031 |
| MBH 1435-U | MTU | Germany | 12V 4000 G23R | 1162 | 1148 |
| MBH 1500-T | Mitsubishi | France | S12R-PTA2 | 1234 | 1122 |
| MBH 1650-C | Cummins | India | KTA50G8 | 1341 | 1121 |
| MBH 1700-T | Mitsubishi | France | S12R-F1PTAW2 | 1378 | 1250 |
| MBH 1880-U | MTU | Germany | 12V 4000 G23 | 1504 | 1336 |
| MBH 1900-T | Mitsubishi | France | S16R-PTA | 1526 | 1392 |
| MBH 2045-U | MTU | Germany | 12V 4000 G63 | 1636 | 1504 |
| MBH 2100-C | Cummins | UK | QSK60-G3 | 1685 | 1517 |
| MBH 2150-T | Mitsubishi | France | S16R-PTA2 | 1708 | 1552 |
| MBH 2250-C | Cummins | UK | QSK60-G4 | 1776 | 1600 |
| MBH 2250-T | Mitsubishi | France | S16R-PTAA2 | 1780 | 1634 |
| MBH 2285-U | MTU | Germany | 16V 4000 G23 | 1828 | 1716 |
| MBH 2595-U | MTU | Germany | 16V 4000 G63 | 2076 | 1828 |
| MBH 2600-T | Mitsubishi | Japan | S16R2-PTAW | 2080 | 1882 |
| MBH 2700-T | Mitsubishi | Japan | S16R2-PTAW-E | 2161 | 1964 |
| MBH 2870-U | MTU | Germany | 20V 4000 G23 | 2296 | 2088 |
| MBH 3170-U | MTU | Germany | 20V 4000 G63 | 2536 | 2296 |
| MBH 3310-U | MTU | Germany | 20V 4000 G63L | 2648 | 2460 |
MBH 60HZ HIGH SPEED DIESEL GENSETS BASED ON MITSUBISHI, CUMMINS AND MTU ENGINES
| Genset Model | Engine Make | Engine Country of Origin | Engine Model | Standby Rating (KWe @ 1800rpm) | Prime Rating (KWe @ 1800rpm) |
| MBH 900-T | Mitsubishi | France | S12A2-PTA | 768 | 685 |
| MBH 900-C | Cummins | India | QSK23G3 | 800 | 727 |
| MBH 1000-C | Cummins | UK | QST30G3 | 916 | 830 |
| MBH 1100-C | Cummins | UK | QST30G4 | 1000 | 910 |
| MBH 1150-T | Mitsubishi | France | S12H-PTA | 1026 | 931 |
| MBH 1400-T | Mitsubishi | France | S12R-PTA | 1217 | 1092 |
| MBH 1450-C | Cummins | India | KTA50G3 | 1250 | 1135 |
| MBH 1300-U | MTU | Germany | 12V 4000 G41R | 1300 | 1180 |
| MBH 1500-T | Mitsubishi | France | S12R-PTA2 | 1388 | 1235 |
| MBH 1960-C | Cummins | India | KTA50G9 | 1569 | 1295 |
| MBH 1900-T | Mitsubishi | France | S16R-PTA | 1611 | 1468 |
| MBH 1665-U | MTU | Germany | 12V 4000 G43 | 1665 | 1430 |
| MBH 1815-U | MTU | Germany | 12V 4000 G83 | 1815 | 1600 |
| MBH 2150-T | Mitsubishi | France | S16R-PTA2 | 1824 | 1656 |
| MBH 2250-T | Mitsubishi | France | S16R-PTAA2 | 2042 | 1819 |
| MBH 2550-T | Mitsubishi | France | S16R-Y2PTAW2-1 | 2028 | 1837 |
| MBH 2590-C | Cummins | UK | QSK60-G6 | 2074 | 1824 |
| MBH 2185-U | MTU | Germany | 16V 4000 G43 | 2185 | 1900 |
| MBH 2400-U | MTU | Germany | 16V 4000 G83 | 2400 | 2100 |
| MBH 2630-U | MTU | Germany | 20V 4000 G43 | 2630 | 2360 |
| MBH 2810-U | MTU | Germany | 20V 4000 G83 | 2810 | 2600 |
| MBH 3315-U | MTU | Germany | 20V 4000 G83L | 3315 | 2805 |
